Devices management

Agents

kapptivate agent administration lets admins manage their agents.
There are 4 kinds of agents: cellular, ethernet, smartphone and passive agents.
  • Cellular agents: robots designed to test and monitor SIM based services.
  • Ethernet agents: robots (hardware) or agents (software) that can perform tests based on cable internet or a private LAN.
  • Smartphone agents: robots or agents that can control real phone devices
  • Passive agents: agents that can retrieve server logs (used for infrastructure monitoring)
Accessing the list of robots / agents
To access the list of agents you deployed within your organization, you just have to go to the administration page. Click on "Cellular agents", "Ethernet Agents", "Passive agents" or "Smartphone agents" in "Devices", depending on the one you want to work on. You will see a box for each agent deployed.
All the agents that are configured for your environment are shown on this page.
For each robot / agent, you will have access to the following details:
  •  Robot / agent Name
  •  Zone: The actual location of your robot (it can be configured in its configuration file).
  •  Number of sim / smartphones: the number of sim cards or smartphones currently used on the robot (only available for cellular and smartphone robots).
There is a status field for each agent:
  • Available means the robot is up and running
  • Maintenance means the robot has been put in maintenance mode
  • Unreachable means the robot can't be reached
Adding a Robot
In order to add a robot, without regard for its type, simply navigate to the robot page (either Cellular, Ethernet, Smartphone or Passive). Here you will find a list of your existing robots.

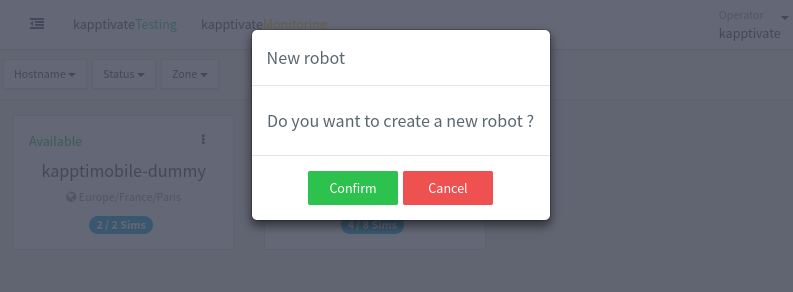

Adding a robot is as simple as clicking on the top right button Create Robot, click Confirm in the popup that appears, and then note down both the username and password displayed. You will have to enter both in the configuration file located in the robot. You will need SSH access to the robot to do so. Contact kapptivate support for help (support@kapptivate.com).

Accessing your robot configuration

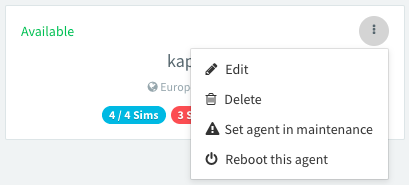

If you click on the ⋮ icon, you may perform the following actions:
Capture d’écran 2022-06-07 à 16.32.12
  • Edit: edit the configuration parameters of the agent
  • Delete: to delete the agent
  • Set agent in maintenance: to put the agent in maintenance (deactivates the monitorings)
  • Unset agent from maintenance: to release the agent from maintenance mode
  • Reboot this agent: to restart the robot

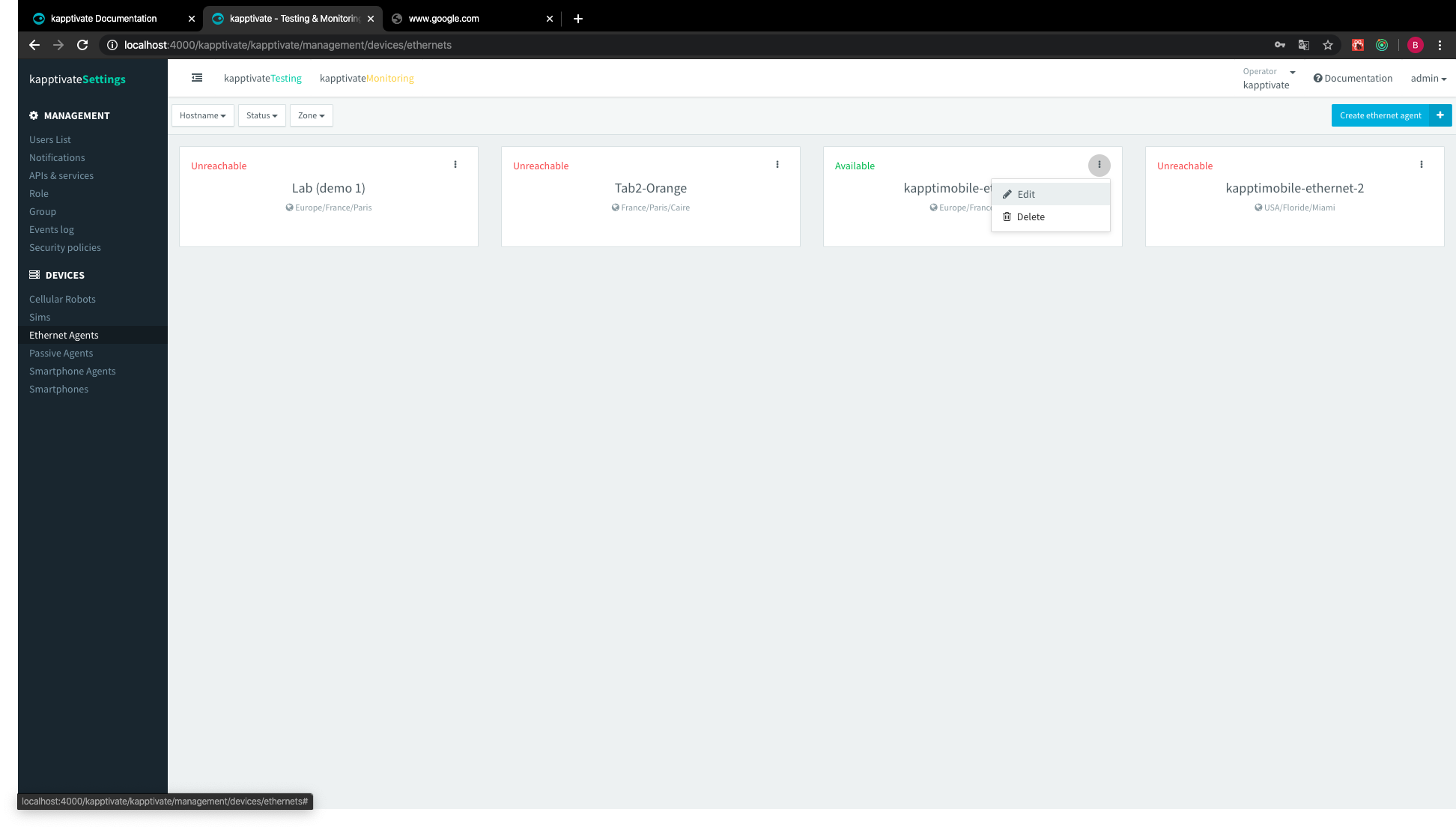

Click on vertical menu (3 vertical dots) on the one you want and then click edit:

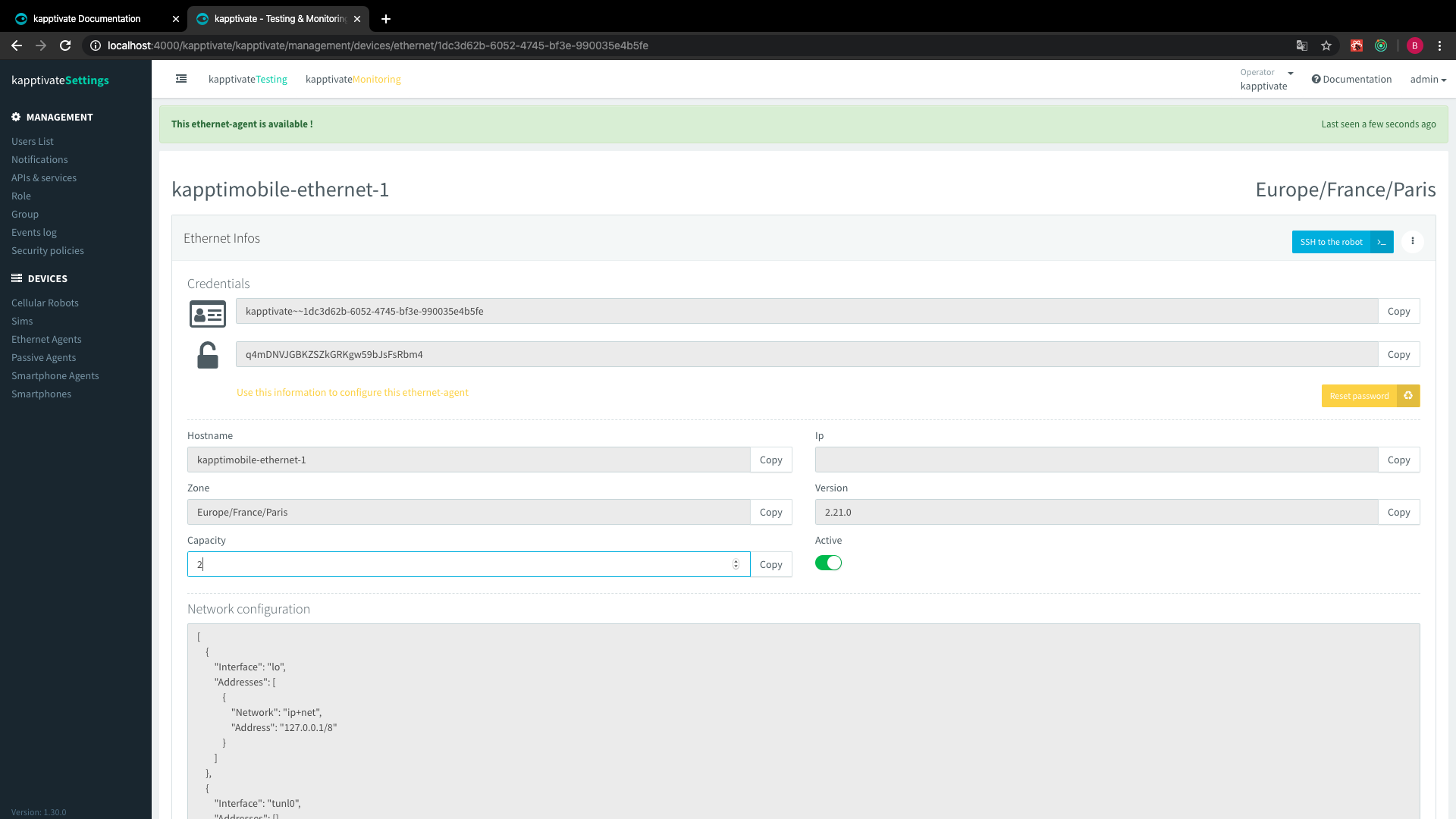

You are now on the agent detailed view.
At the top you can see the agent's credentials.

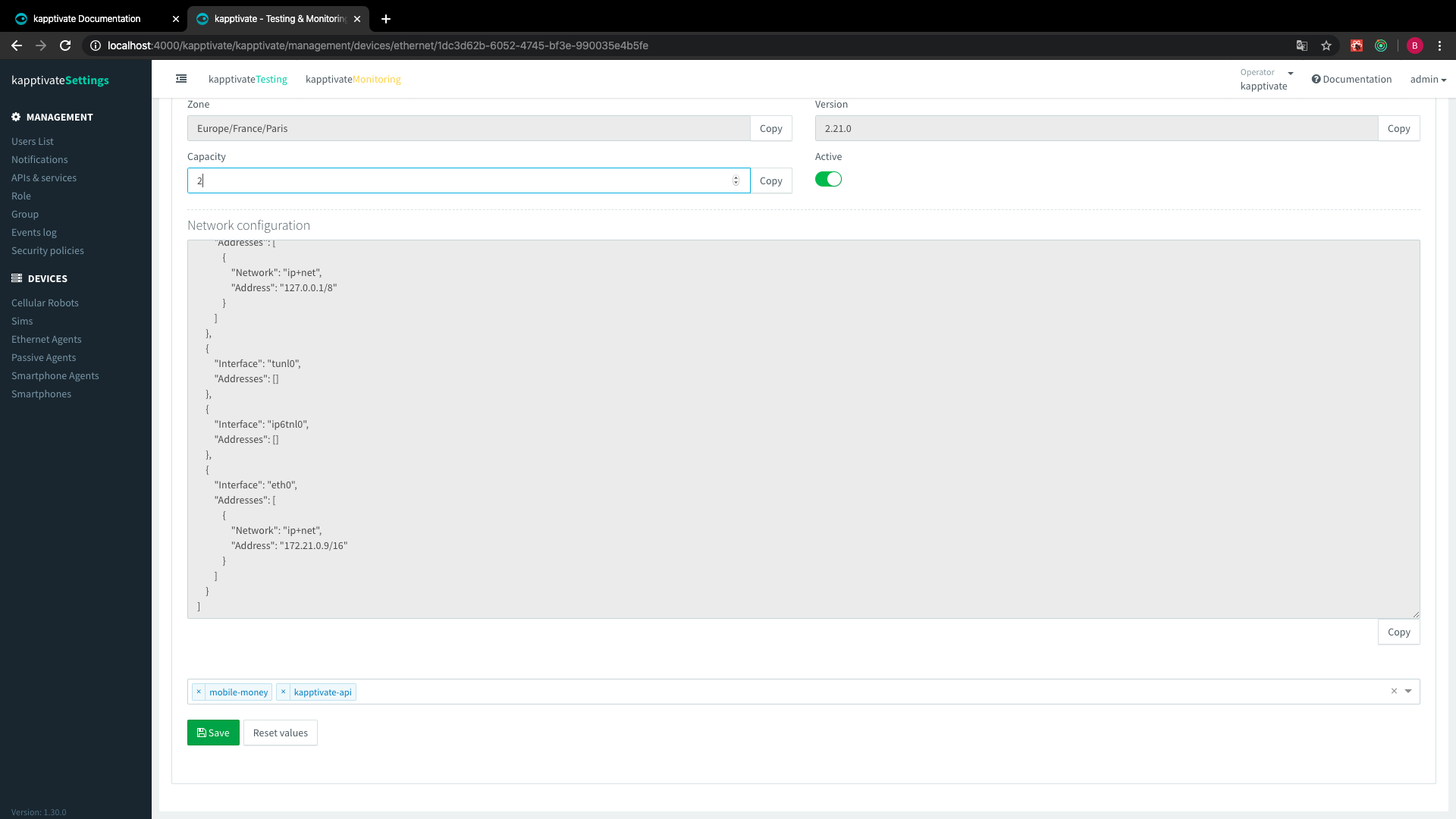

Here you can see your agent configuration:
  •  Hostname: name of your ethernet agent
  •  Ip: ip or the ethernet agent
  •  Zone: region where your ethernet is located
  •  Version: version of the agent
  •  Capacity (if applicable): number of action that the agent can do in parallel
  •  Active: if your agent is active or if it is under maintenance
  •  Network Configuration: network configuration of the agent (as ifconfig)
  •  Tags: select the products for which you want to use this agent

After any modifications, remember to save by clicking on the save button at the bottom left.


At the bottom of the page, you will also find information about how busy you agent has been the day before between 0:00 and 23:59 (based on the timezone you selected). In this example, the agent has been fully busy (performing a test / monitoring) between 16h50 and 16h55.

The top bar allows you to quickly identify is you could add other monitorings on this specific resource. On this particular example, adding a monitoring with a frequency that is every 10 minutes or higher would not be possible, as there are already some 10 minutes slots when the sim is fully used. But adding a new monitoring with a frequency of 30 minutes or less could be possible.

Capture d’écran 2022-06-07 à 18.16.51

Sims

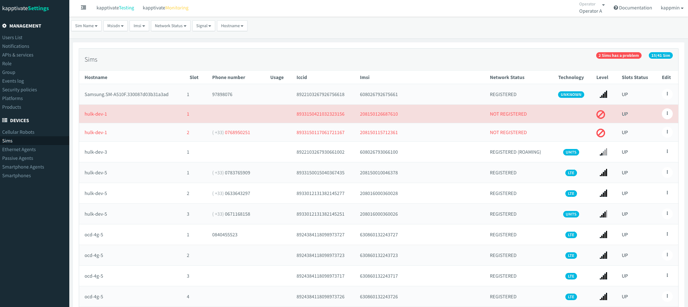

If you use a cellular robot, the list of sims that you may use is going to be shown under the "sims" menu.

Capture d’écran 2022-06-07 à 17.07.21

Available sims are listed in gray, while the unregistered sims are listed in red. All information (hostname, slot, phone number, usage, iccid, imsi, network status, technology used, signal level and slot status) is shown when available.

A click on the ⋮ icon next the the sim card allows you to either reboot the slot (modem), or edit the resource.

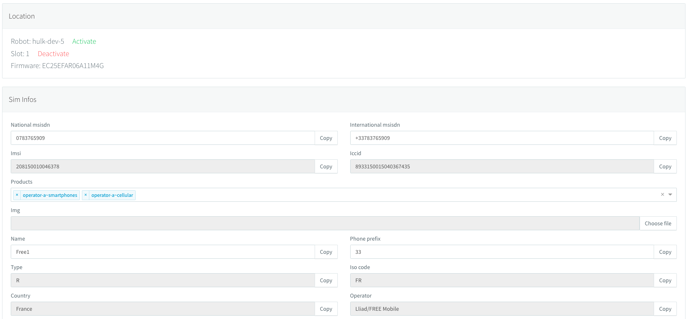

When editing the sim card, you can see more detailed information about it, and possibly configure the following parameters:

  • National MSISDN
  • International MSISDN
  • Products: the products that you want the sim to be available for
  • Name: the name of the sim card
  • Phone prefix: the country code
  • Active: activates or deactivates the monitorings on the sim card
  • APN name
  • APN login
  • APN password

Don't forget to save and reboot the slot after any modification.

Capture d’écran 2022-06-07 à 17.14.58

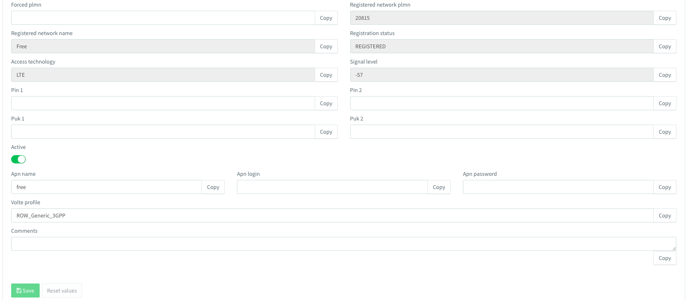

Capture d’écran 2022-06-07 à 17.15.31

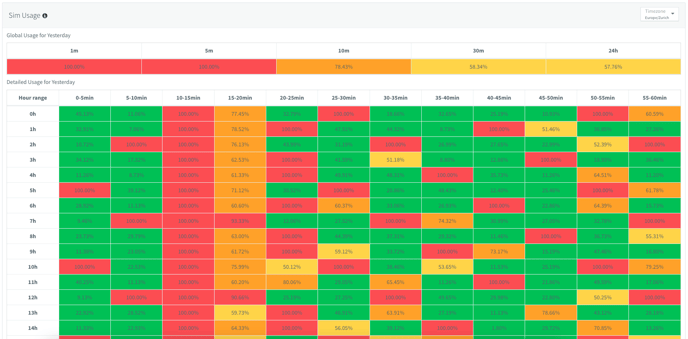

At the bottom of the page, you will also find information about how busy you sim has been during the last 24 hours. In this example, the sim has been fully busy (performing a test / monitoring) between 4h35 and 4h40.

The top bar allows you to quickly identify is you could add other monitorings on this specific resource. On this particular example, adding a monitoring with a frequency that is every 5 minutes or higher would not be possible, as there are already some 5 minutes slots when the sim is fully used. But adding a new monitoring with a frequency of 10 minutes or less could be possible.

Capture d’écran 2022-06-07 à 17.16.14

Smartphones

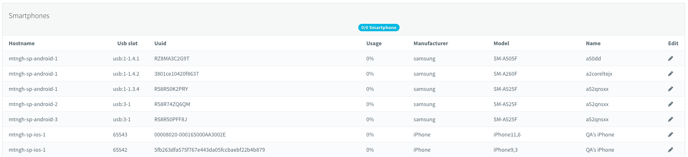

If you use a smartphone robot, the list of smartphones that you may use is going to be shown under the "smartphones" menu.
Capture d’écran 2022-06-07 à 17.57.35

Available smartphones are listed in gray, while the disconnected smartphones are listed in red. All information (hostname, usb slot, uuid, usage, manufacturer, model and name) is shown when available.

A click on the ⋮ icon next the the smartphone allows you to edit the resource.

When editing the smartphone, you can see more detailed information about it, and possibly configure the following parameters:

  • Name: give a name to the smartphone
  • Tags: the products that you want the smartphone to be available for

Don't forget to save after any modification.

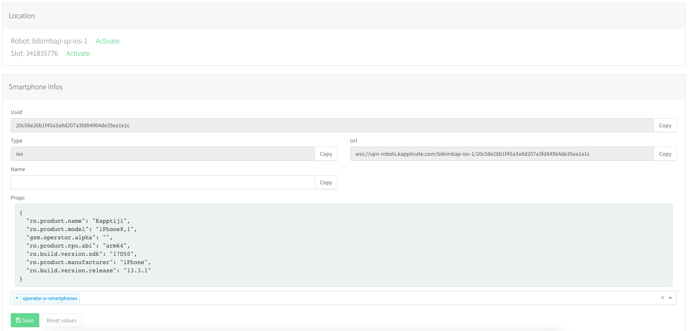

Capture d’écran 2022-06-07 à 17.53.05

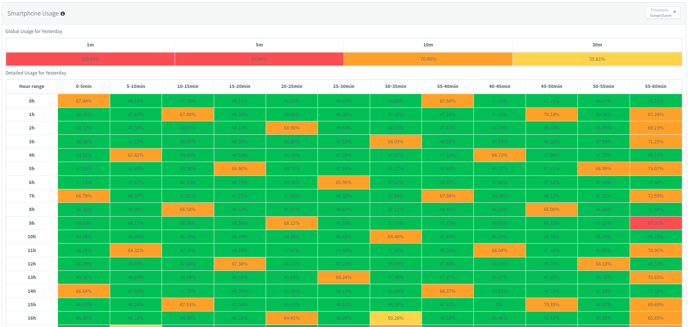

At the bottom of the page, you will also find information about how busy you smartphone has been during the last 24 hours. In this example, the smartphone has been busy at 87,97% (performing a test / monitoring) between 9h55 and 10h00.

The top bar allows you to quickly identify is you could add other monitorings on this specific resource. On this particular example, adding a monitoring with a frequency that is every 5 minutes or higher would not be possible, as there are already some 5 minutes slots when the sim is fully used. But adding a new monitoring with a frequency of 10 minutes or less could be possible.

Capture d’écran 2022-06-07 à 18.00.10
