Some robot models do not have a display output. Here is how to connect a screen to these robots.
The model concerned by this article is the mini cellular robot that looks like this:

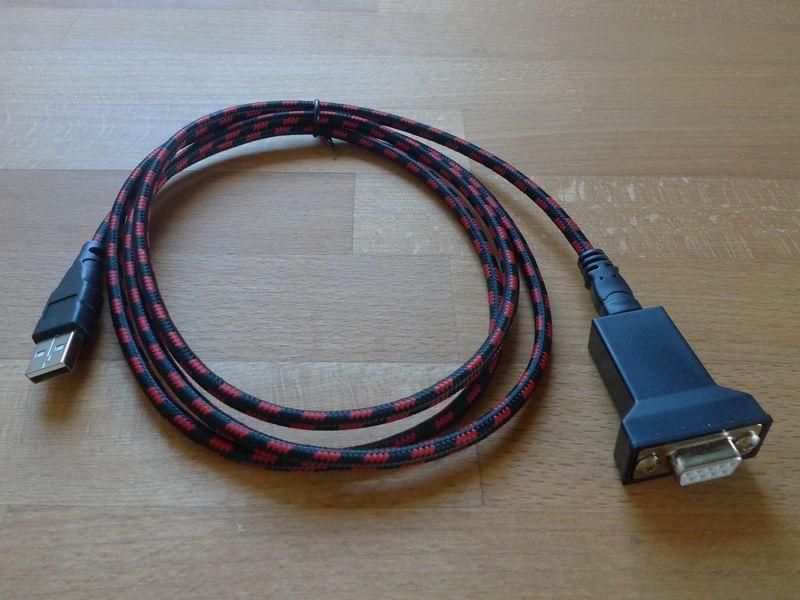

To interact with the robot, you will need a serial to USB adapter:
A specific driver is required to use this cable to view the output from the robot. You can download it on this page.
A software is also required to use the serial connection. You can use CoolTerm for macOS or CoolTerm for Windows. In case you need all the versions of this software (including the Linux version), here is the link to the CoolTerm download page.
The parameters to use are:
- Baudrate: 115200
- Data Bits: 8
- Parity: None
- Stop bit: 1
You can now have access to the robot interface and login using your credentials.
